Tillett B5 Seat Package with Pad Set, Bracket and Sliders
Couldn't load pickup availability
THE TILLETT B5 Seat

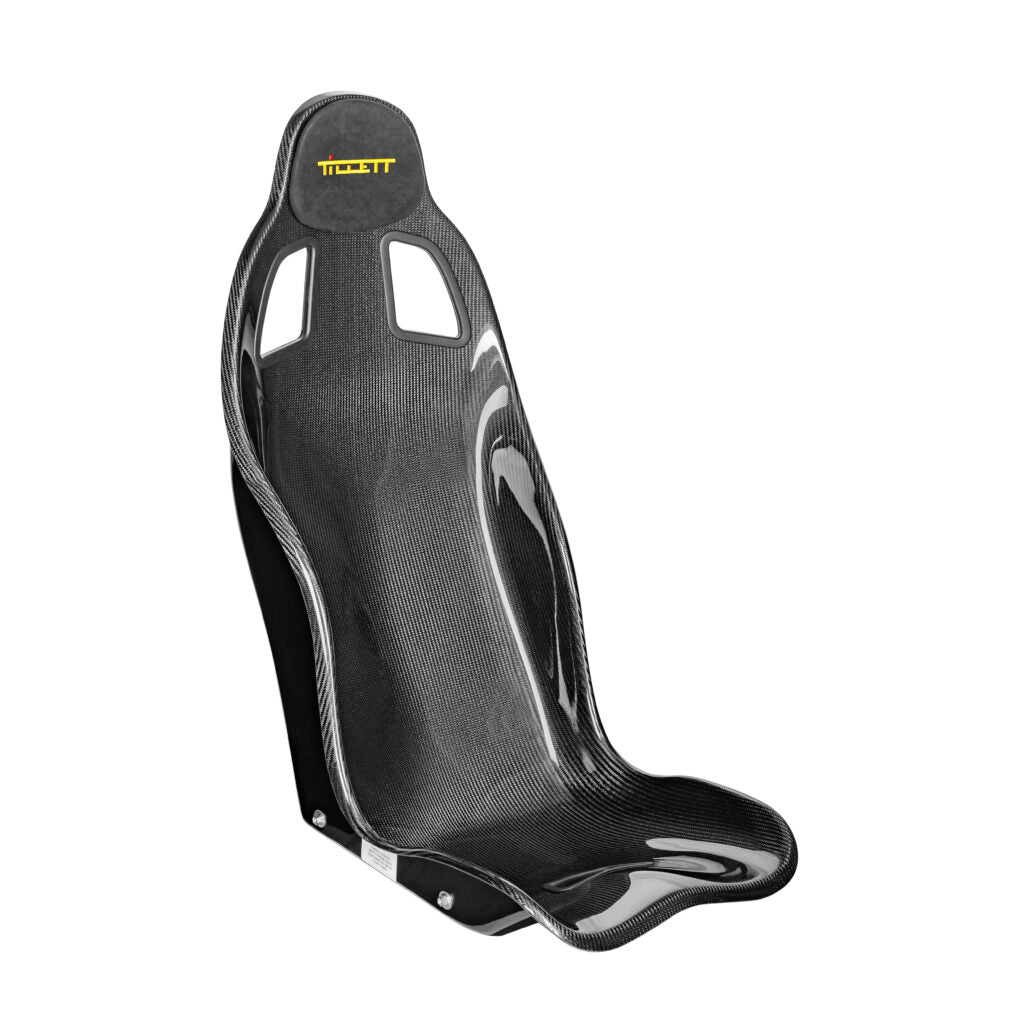

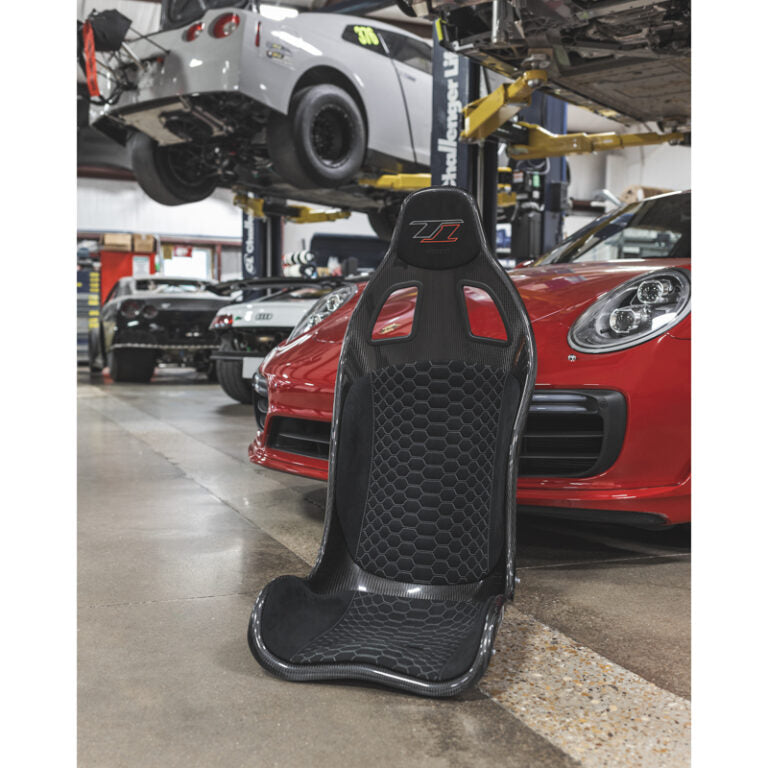

We simplify ordering your Tillett B5 Carbon Fiber seat by taking out the guess work and including the most popular options all in one package. Our specification includes the B5 seat finished in a beautiful high gloss carbon fiber on the front and high gloss black glass reinforced plastic rear. All seat packages include a black suede cushion with silver stitched hex pattern to compliment the seat's striking looks and absorb road vibrations. Also included are vehicle specific mounting brackets and sliders to make installation a bolt-in affair, just select your application.
- 41cm external maximum width at lower leg area.
- 4.5KG (Weight of seats can vary by 10%).
- Side-mounted seat fixing points.
- Upright road car position with swept away sides for easy access and unhindered driving experience.
- The B5 has a compact exterior and a thin base, which drops the seating dome right on the floor, allowing more head room.
- Originally designed to complement the narrow Lotus Elise/Exige platform cars.
- The seat is not only exceptionally light but also very rigid, which adds to the handling, feedback and feeling of security.
- Suitable for a road seatbelt or race harness.
- Designed to be compatible with the Hans-device.

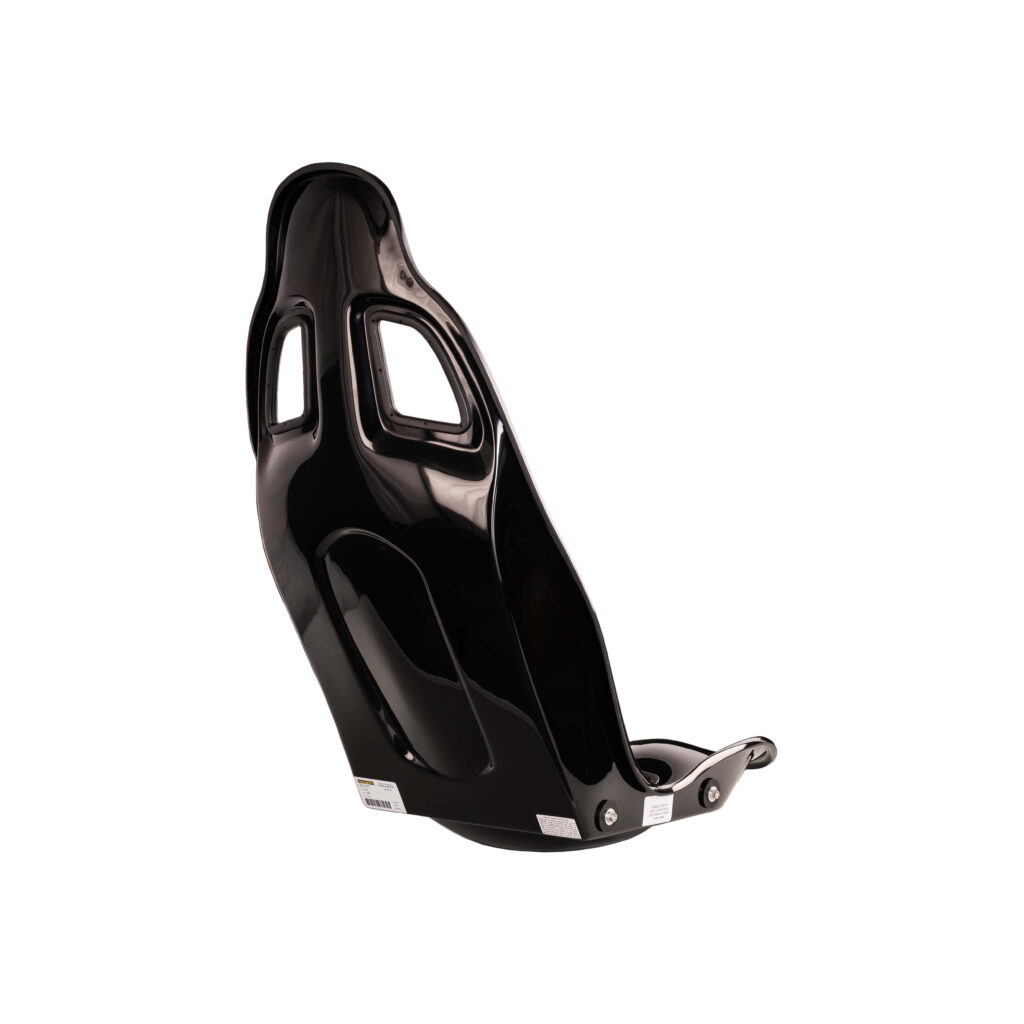

- Finished in Carbon Fiber front and glass reinforced plastic rear (GRP)

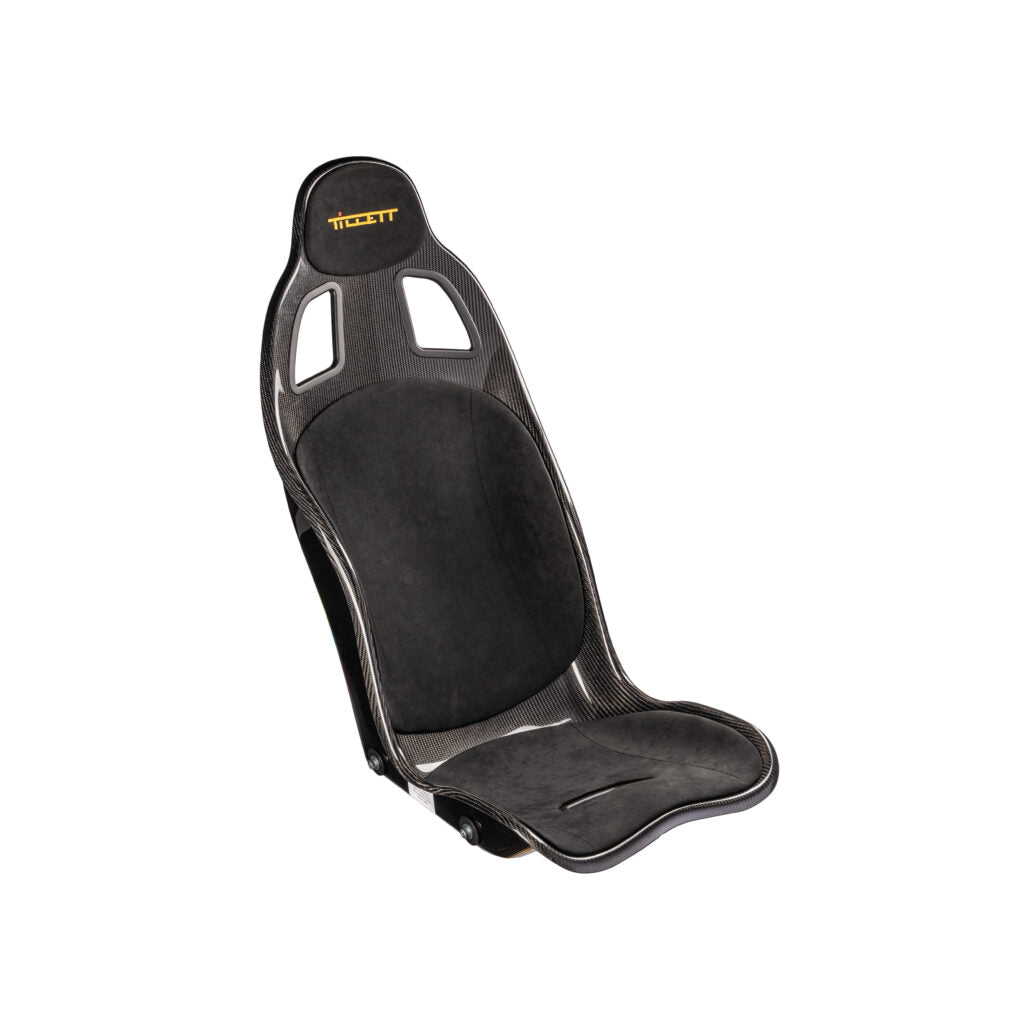

- Dinamica® covered headrest panel included as standard.
- Supportive and comfortable without padding, great option for open top cars.
- The included suede covered cushion and back panel set weight is 0.9kg.
- Registered Community Design (000922950-0002).
- Designed and manufactured in the United Kingdom.

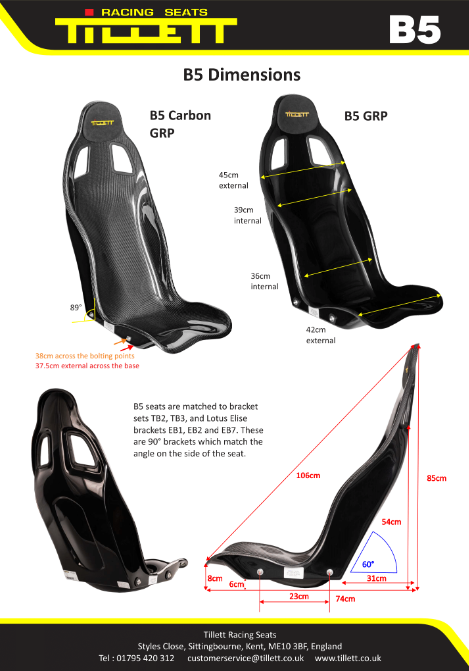

These are Carbon Fiber front and GRP finished in gloss black on the rear. They feature rolled edges with 41cm total width (see photos for full dimensions).

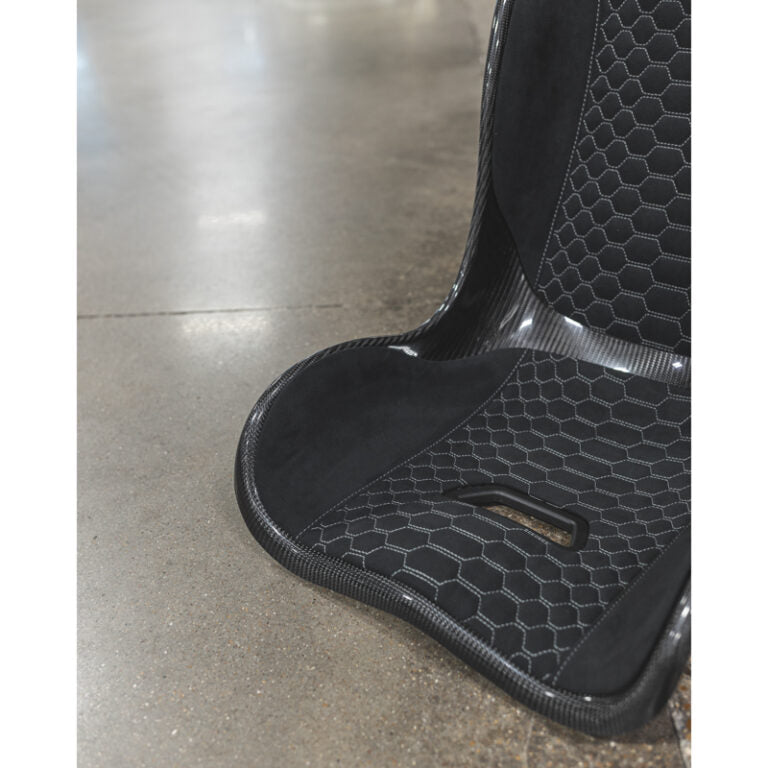

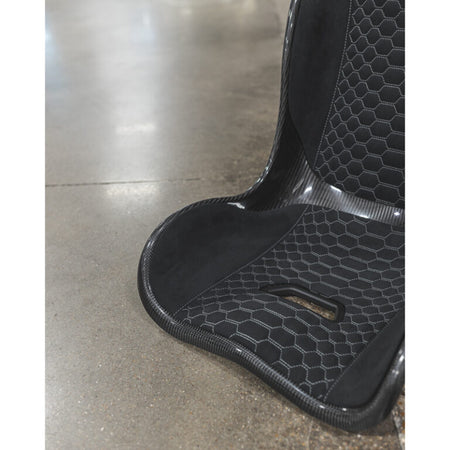

***Includes suede cushion and back pad featuring silver stitched hexagon pattern***
***Includes bracket and slider kit, just select your application for a bolt-in install***
Please email Nick@Kaizenspeed.com to verify stock status if you're under time constraints.
